Premium UI implementation validation
Date: 2026-08-02
Branch: design/mobilityops-premium-ui
Implemented scope
- New responsive Control Rail shell, icon system, product mark, top bar, desktop rail, off-canvas navigation and labelled mobile bottom navigation.
- Redesigned login, dashboard, fleet, vehicle, bookings, booking return, data quality, duplicate review, knowledge, integrations and audit surfaces.
- Return capture now has an explicit review step; no return API request is sent before confirmation. The existing idempotency key and local-commit/outbox behavior remain.
- Booking rows are limited to 25 per client-side page; mobile tables keep explicit field
labels through
data-labelsemantics. - Loading, empty and error surfaces, focus treatment, reduced-motion handling and honest integration states are shared system behaviors.
Visual evidence

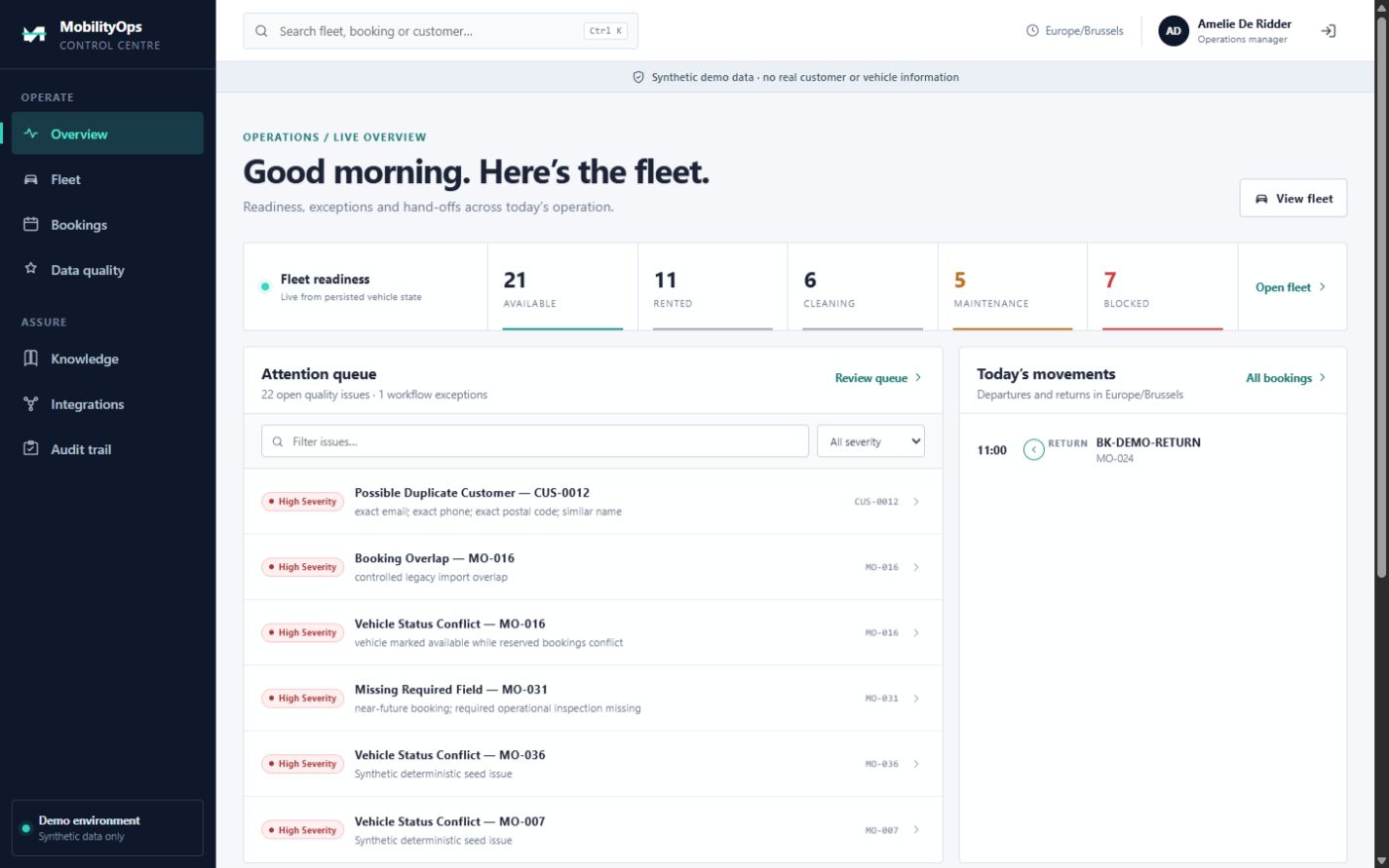

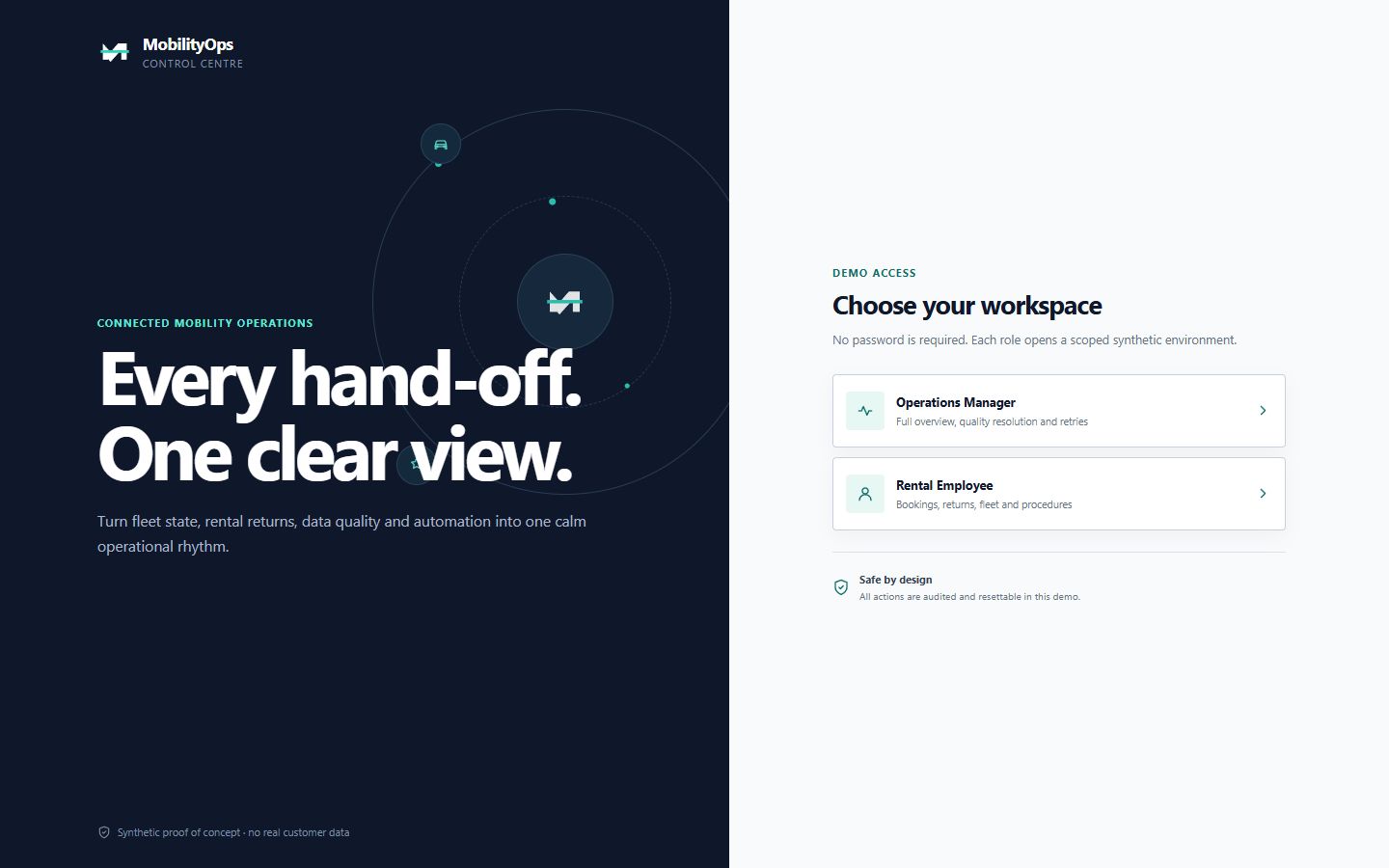

Desktop:

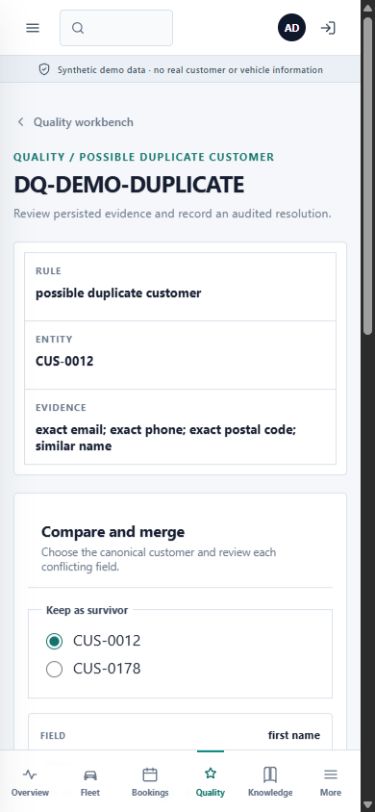

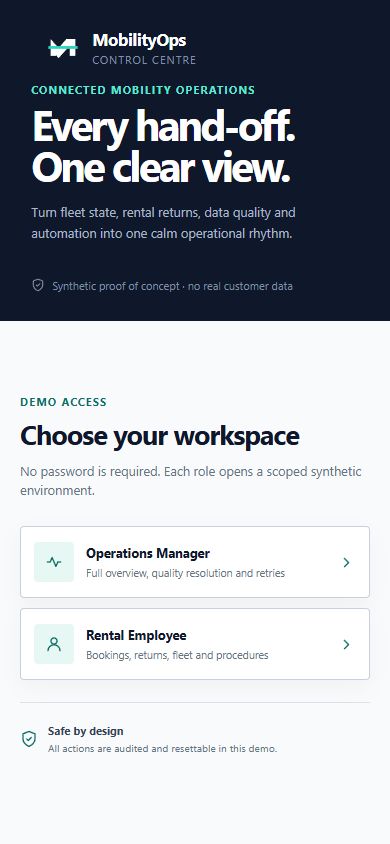

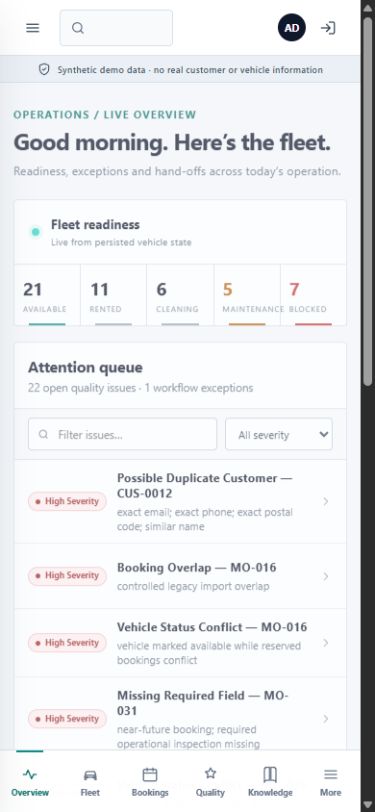

Mobile:
The complete capture set is in artifacts/design-validation/implementation/.
Responsive evidence
Browser evaluation measured the document element after authenticated page render:
| Width | Client width | Scroll width | Result |
|---|---|---|---|
| 390 | 375 (vertical scrollbar present) | 375 | no horizontal overflow |
| 768 | 753 (vertical scrollbar present) | 753 | no horizontal overflow |
| 1280 | 1265 (vertical scrollbar present) | 1265 | no horizontal overflow |
| 1440 | 1425 (vertical scrollbar present) | 1425 | no horizontal overflow |
The same widths are automated in frontend/e2e/ui-redesign.spec.ts.
Performance choices
- No image runtime dependency and no animation library were added.
- Branding, navigation and workflow illustrations are inline SVG/CSS.
- Inter is used only when locally available; there is no blocking font request.
- The production build remains a single small PoC bundle (approximately 239 kB JS and 37 kB CSS uncompressed at implementation time).
